Esoteric

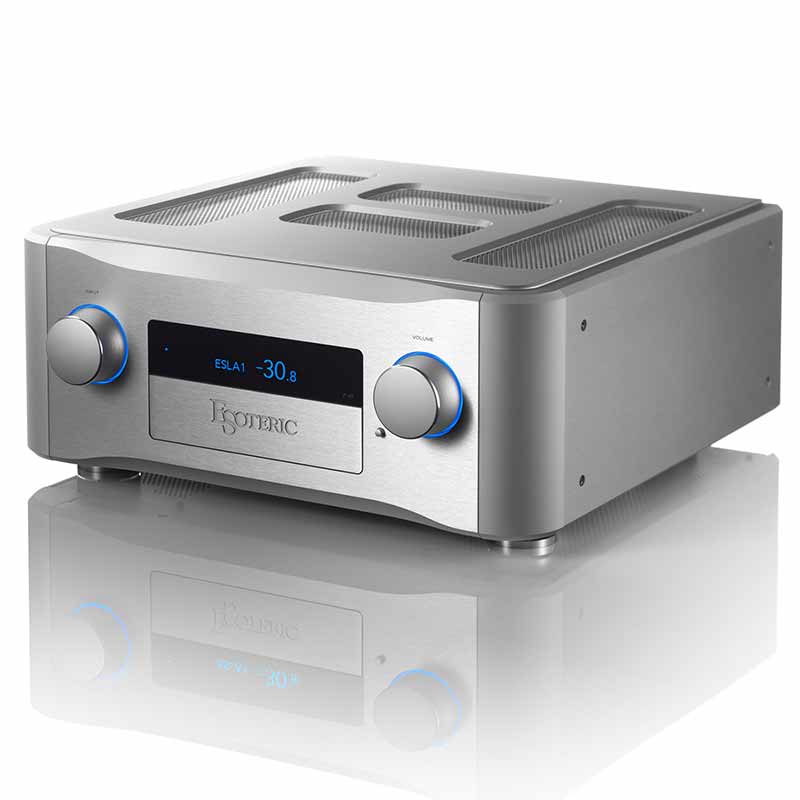

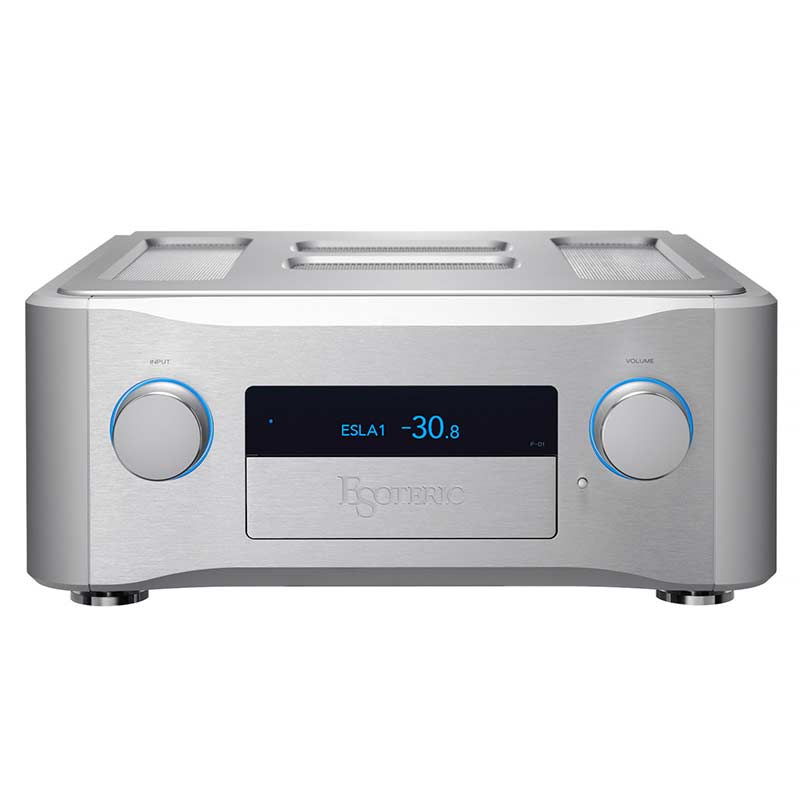

F-01 - Integrated Amplifier

0.00 LKR
0.00 LKR
Sale Inquire Now
Inquire Now

The “Finest” Integrated Amplifier You Could Ever Want – The new F Series integrated amplifiers are the culmination of a range of technologies designed to fulfill your ideals. Incorporating all of the preamp and power amp developments from the flagship Grandioso “X” Edition, the new F Series integrated amplifiers deliver outstanding musicality that captures the rich textures of music in a single integrated amplifier.

Key Features

  • A fully balanced dual mono preamp in the direct line of the Grandioso C1X
  • "Ultra Fidelity Attenuator System", a stepped attenuator circuit developed by Esoteric
  • Volume can be adjusted in 0.1dB/1,120* steps with our proprietary attenuator module "UFA-1792" *Preamp gain setting: at +12dB
  • 3 inputs of “ES-Link Analog”, a unique and proprietary current transmission system
  • Two headphone outputs (balanced 4-pin XLR / unbalanced 6.3mm) with built-in fully balanced dual mono headphone amplifier
  • Dual mono phonostage preamp (RCA x 1, MM/MC)

Pickup available at store

Usually ready in 24 hours.

View store information

Experience Before You Buy

Visit our demo room to try out our products firsthand.

Book an appointment now!

  • 100 % Secure Shopping
  • 12 Months Warranty
  • Free Delivery within Colombo
View Product Details
  • Specifications
  • DOWNLOADS
  • A fully balanced dual mono preamp in the direct line of the Grandioso C1X
  • "Ultra Fidelity Attenuator System", a stepped attenuator circuit developed by Esoteric
  • Volume can be adjusted in 0.1dB/1,120* steps with our proprietary attenuator module "UFA-1792" *Preamp gain setting: at +12dB
  • 3 inputs of “ES-Link Analog”, a unique and proprietary current transmission system
  • Two headphone outputs (balanced 4-pin XLR / unbalanced 6.3mm) with built-in fully balanced dual mono headphone amplifier
  • Dual mono phonostage preamp (RCA x 1, MM/MC)
  • 3-band balanced tone control, independently adjustable for each input source
  • ES-Link Analog(x1) /XLR (x1) pre-out for connecting the S-05 as an external power amplifier
  • Dedicated DC power connector for connecting the PS-01F external power supply dedicated to the built-in preamp
  • Preamp gain can be adjusted in 4 steps (0/+6/+12/+18dB) to match the connected power amplifier
  • Simple and straightforward circuit design concept based on Grandioso S1X
  • Class A 30 WPC/8Ω
  • Excellent power linearity and driving power (60 WPC/4Ω)
  • All stages of the power rectification and smoothing circuit are configured with dual monaural design
  • Powerful bipolar transistor 3-parallel push-pull configuration
  • Huge 940VA EI core power transformer
  • Channel-independent Grandioso grade custom block capacitors (10,000μF x 4/ch)
  • Custom wave-shaped heat sinks to reduce peak resonance
  • Independently adjustable input gains (±18dB; 0.1dB steps)
  • L/R channel balance (0.1dB steps)
  • AV through output (volume bypass) ensures seamless coexistence with AV systems
  • Aluminum body remote controller (RC-1339) can also be used to operate Esoteric's SACD players and network players
  • Displayed source device names can be programed
  • Mute, dimmer and automatic display-off functions
  • Control functions (RS-232C, trigger input / output)

Click Here to Download the F-01 - Integrated Amplifier Manual

Click Here to Download the F-01 - Integrated Amplifier Spec Sheet
