Goldmund

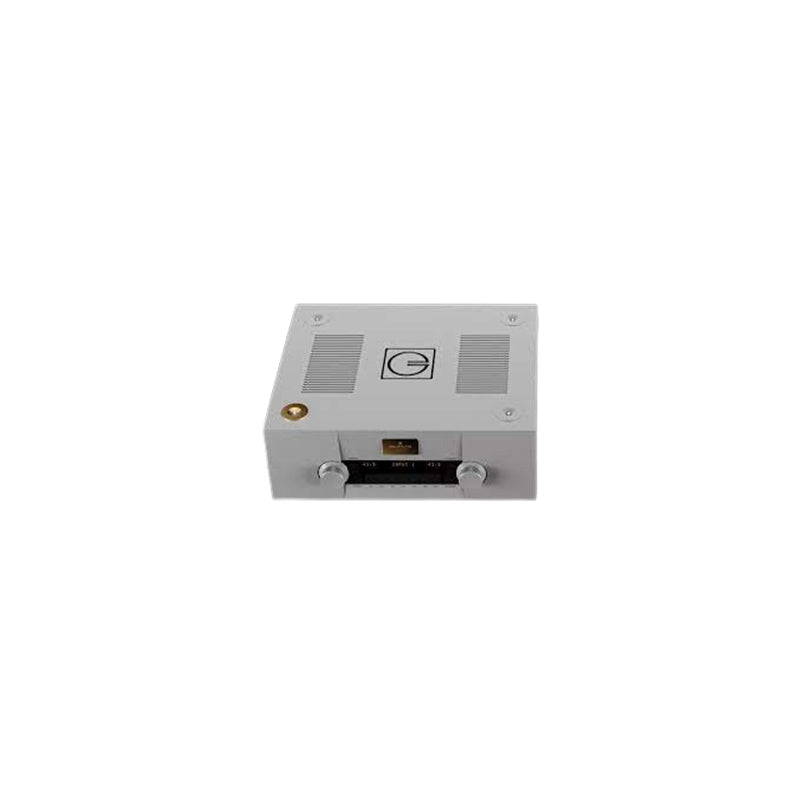

Mimesis Reference - Preamplifier
A complete redesign of the power supply has been implemented, utilizing separate analogue and digital circuits. The Mimesis Reference defies convention with its mastery over Ultra-Low Transient Intermodulation Distortion (TIM). Every delicate transition, every crescendo, is imbued with a purity that embraces the essence of true fidelity.
Features:
- Power, Redefined: The power supply uses separate analog and digital circuits with custom audio-grade transformers for each section, providing dedicated power supplies for the left and right channels for better separation.
- Mastery in Dissipation: A separate power supply drives the digital section, with in-house crafted heat sinks maximizing heat dissipation. Custom Goldmund components ensure a stable sonic power supply.
- Crafted to Perfection: The preamplifier features CNC-machined heat sinks for better cooling. Each Low Noise Op-amp has a custom heat sink made from a single piece of aluminum for optimal cooling efficiency.
- Elegant Audio Jewel: The Mimesis Reference Analogue Preamplifier, available in silver grey or matte black, can be customized with gold or matching front rings. This elegant design complements its high performance and fits any aesthetic.
Pickup available at store
Usually ready in 24 hours.
Experience Before You Buy
Visit our demo room to try out our products firsthand.
- 100 % Secure Shopping
- 12 Months Warranty
- Free Delivery within Colombo
- Specifications
- DOWNLOADS
OUTPUT LEVEL:
- Nominal level: 1.55 V RMS
- Maximum output level (balanced): 9.6 V RMS
- Maximum output level (unbalanced): 4.8 V RMS
- Output impedance: 50 Ohms
FQREUENCY RESPONSE:
- These values for any level to 10 V RMS:
- +/- 0 dB, 20 Hz to 20 kHz
- +/- 3 dB, 0.2 Hz to 1.2 MHz
INPUT SENSITIVITY:
- Nominal level: 100 mV
- Saturation level: 5 V RMS
- Nominal input impedance: 39 kOhms
- Separated input level adjustment for each of the 7
- line inputs: -12 to 12 dB
INPUT LEVEL:
- Maximum input level (balanced): 9.6 V RMS
- Maximum input level (unbalanced): 4.8 V RMS
GROUP DELAY:
- Propagation delay <300 ns stable with frequency
from DC to 200 kHz
DISTODRTION:
- 1 V RMS output level, 80 kHz measurement
bandwidth - 600 ohms termination impedance
- THD unbalanced input to unbalanced output
0.0002 % flat with frequency
DISTORTION (CTD.):
- THD balanced input to balanced output 0.0001 %
flat with frequency - IMD unbalanced input to unbalanced output
0.0002 % - IMD balanced input to balanced output 0.0001 %
SPEED:
- Slew rate of the amplification stages: 2500 V/us
- Rise time: < 400 ns
NOISE:
- Signal-to noise ratio on line input: > 126 dB (0.01
Hz - 10 MHz) - Weighted ASA A: > 136 dB
POWER:
- Nominal line voltage: 115 V or 230 V
- Input voltage range: +/- 15 %
- Maximum power consumption: 70 W
GROUNDING:
- Separated ground and earth signal
Connection optional between earth and ground to
cancel all ground loops
SAFETY FEATURES:
- Automatic switching to MUTING if the AC line
drops or is interrupted - Automatic protection against tape loops
FRONT PANEL CONTROL:
- MUTING/POWER switch control
- VOLUME control
- BALANCE control
- RECORD/MENU switch
- PHASE/EDIT switch
- 7 INPUT

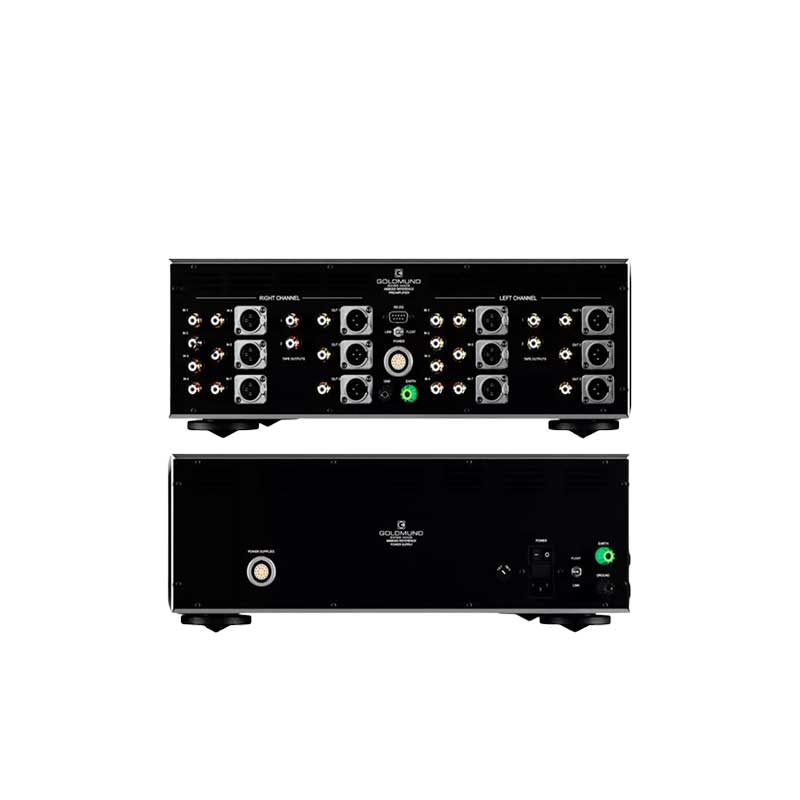

REAR PANEL CONNECTORS & CONTROLS:
- Power connector
- Earthing post (yellow-green)
- Output connectors XLR (right & left) balanced
- Output connectors RCA (right & left) for Tape and
- Line outputs
- Signal grounding post (black)
- Input connectors XLR (right & left) balanced
- Input connectors RCA (right & left) for Tape and
- line inputs
- Link float
- RS232 Connector
POWER SUPPLY CONTROLS:
- Main fuse (2.5 A slow-blow)
SIZE & WEIGHT:
- Preamplifier
- 44 W x 16 H x 40.6 D (cm) – 17.3 W x 6.3 H x
- 16 D (inch)
- 20 kg
- Power Supply
- 44 W x 16 H x 39 D (cm) – 17.3 W x 6.3 H x
- 15.4 D (inch)
- 25 kg
